Huihang · Battery Series
Lithium iron phosphate (LiFePO4) batteries with ultra-long cycle life.
Huihang

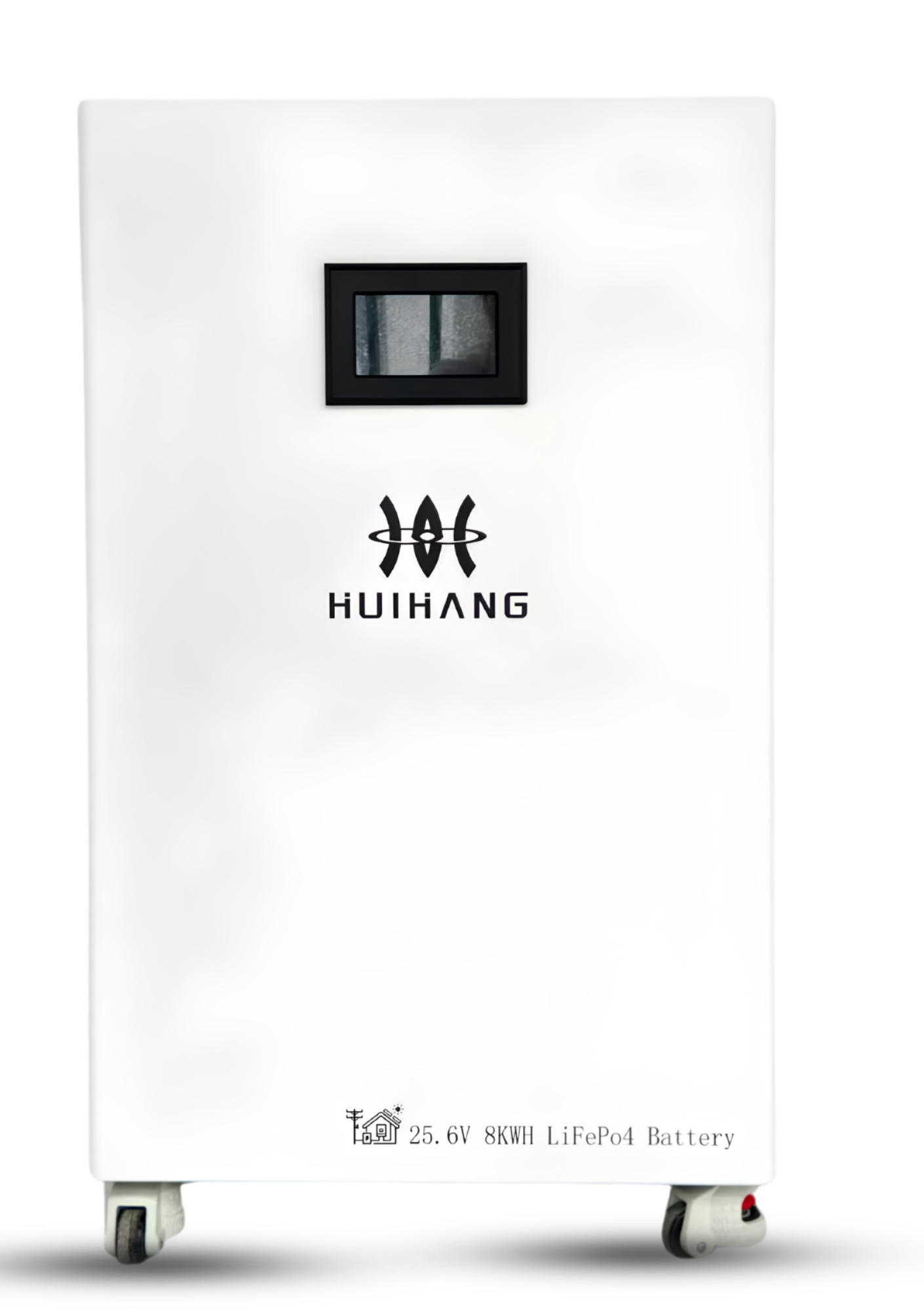

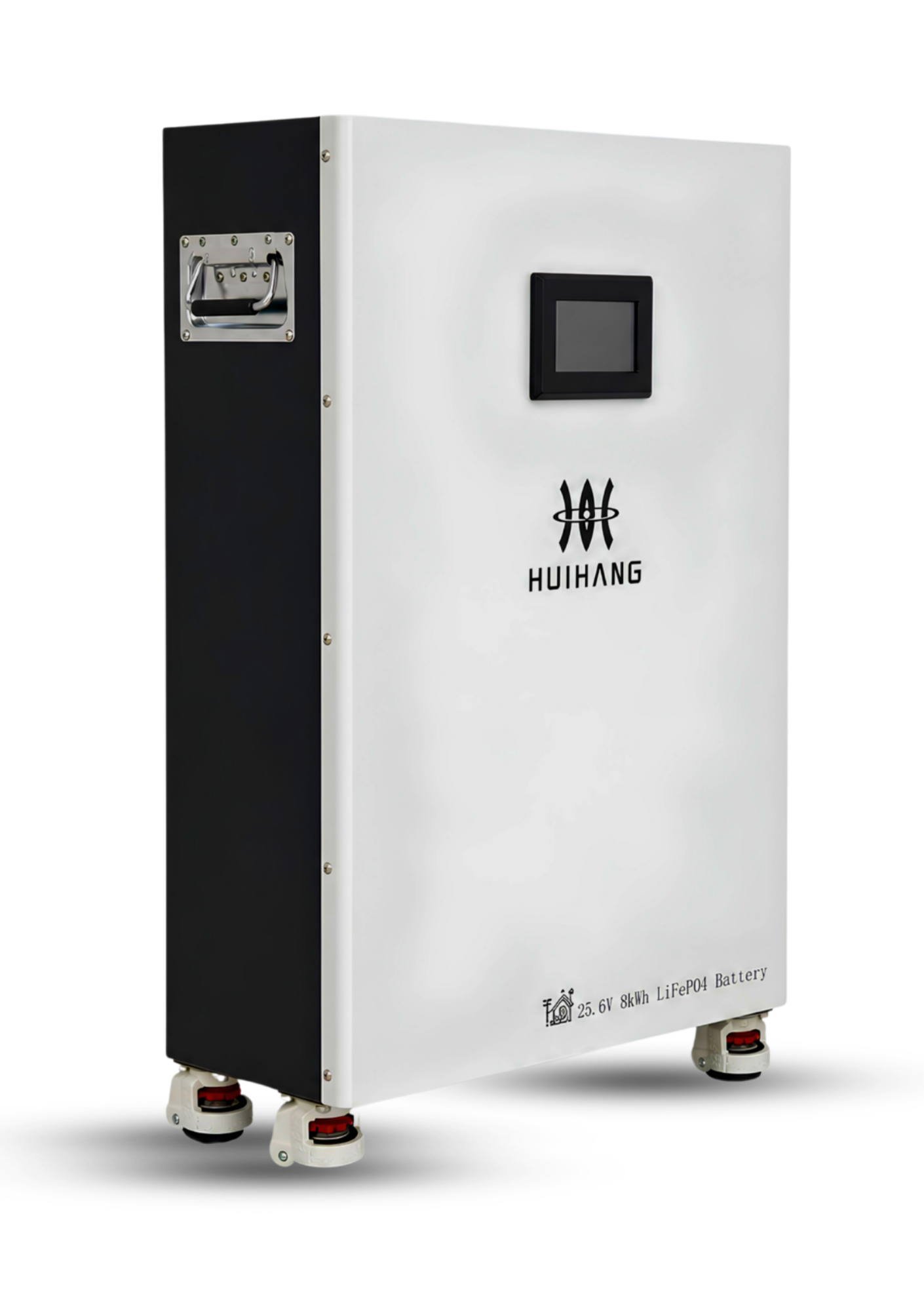

25.6V 8KWH LiFePo4 Battery
25.6V 8kWh floor-mounted LiFePO4 battery with 8S configuration, JIKONG 200A BMS, 2A active balancing, and up to 16 units in parallel.
- 25.6V, 8kWh LiFePO4 floor-mounted energy storage battery.
- 8S configuration with JIKONG JK-B2A8S-20P 200A BMS.
- 2A active balancing; Bluetooth, UART, display, CAN, RS485.
- Up to 16 batteries in parallel; series connection prohibited.
- Battery max continuous charge/discharge: 100A.
- BMS rated 200A charge / 200A discharge / 400A instantaneous.
- Charge cut-off 28.8V; discharge cut-off 20.8V.
- Dimensions 480×200×823 mm incl. castors; 79.5±3kg.
- IP20; floor-mounted with castors.
- Operating charge 0–45°C; discharge -10–55°C.
Battery
| Parameter | Specification |
|---|---|
| Voltage | - 25.6V nominal |
| Capacity | - 300Ah |
| Energy | - 8kWh |
| Battery Type | - LiFePO4, 8S, CALB /Zhonghang cells |
| Max Discharge | - 100A continuous (battery) |
| Cycle Life | - ≥8000 cycles |
| Warranty | - 5 years replacement + 5 years repair |
Product overview
HUIHANG 25.6V 8kWh LiFePO4 battery is a floor-mounted lithium iron phosphate energy storage battery. It uses an 8S pack configuration and a JIKONG JK-B2A8S-20P 200A active-balancing protection board. The BMS supports 2A active balancing, Bluetooth, UART, display, CAN, RS485 and parallel-module control. Series connection is prohibited. It is designed for home energy storage with safe LiFePO4 technology, high efficiency and high capacity.
Important information: Not suitable for life-sustaining medical devices
Warranty
5 years replacement + 5 years repair
