Litharv · Battery Series
Lithium iron phosphate (LiFePO4) batteries with ultra-long cycle life.
Litharv

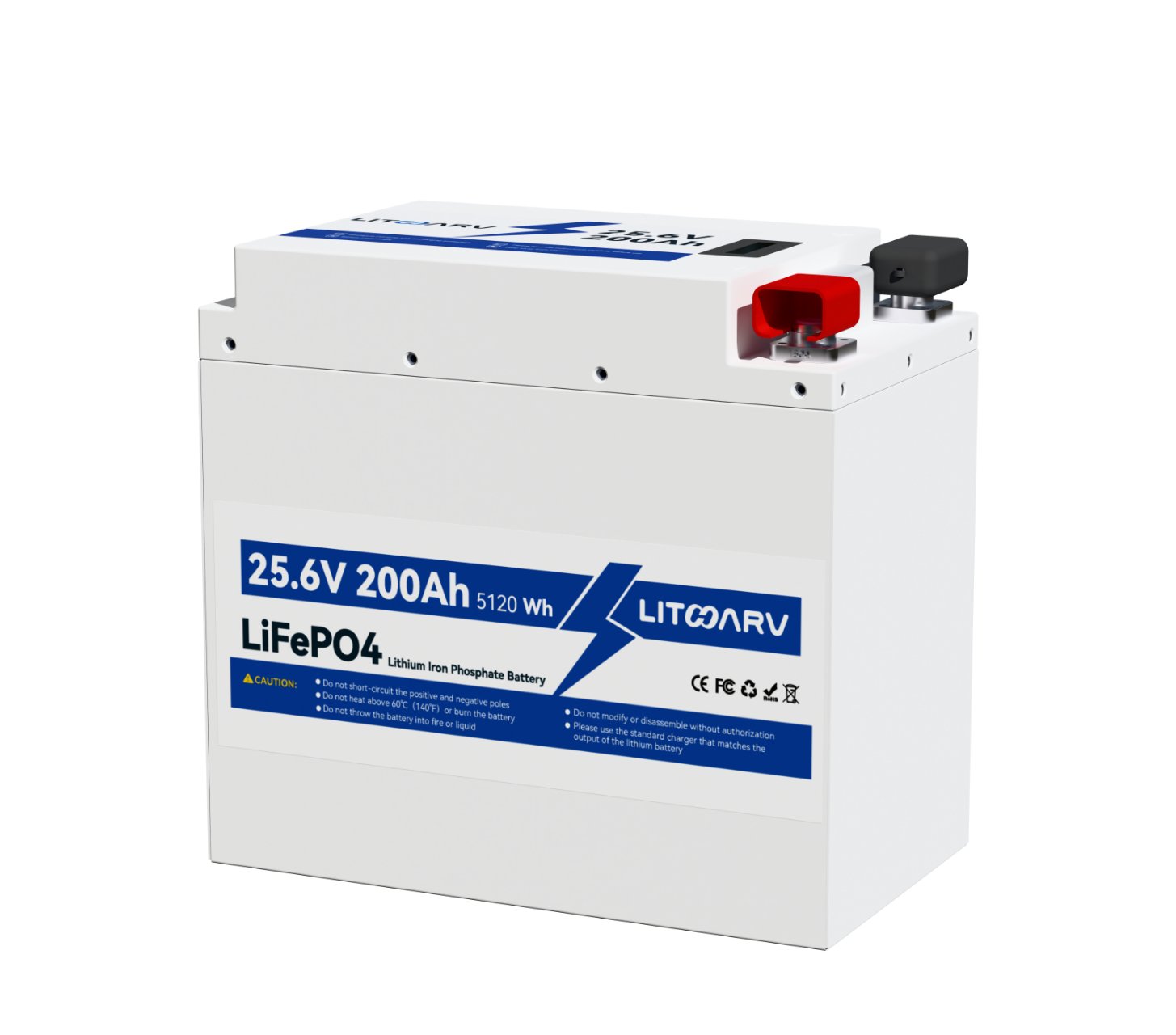

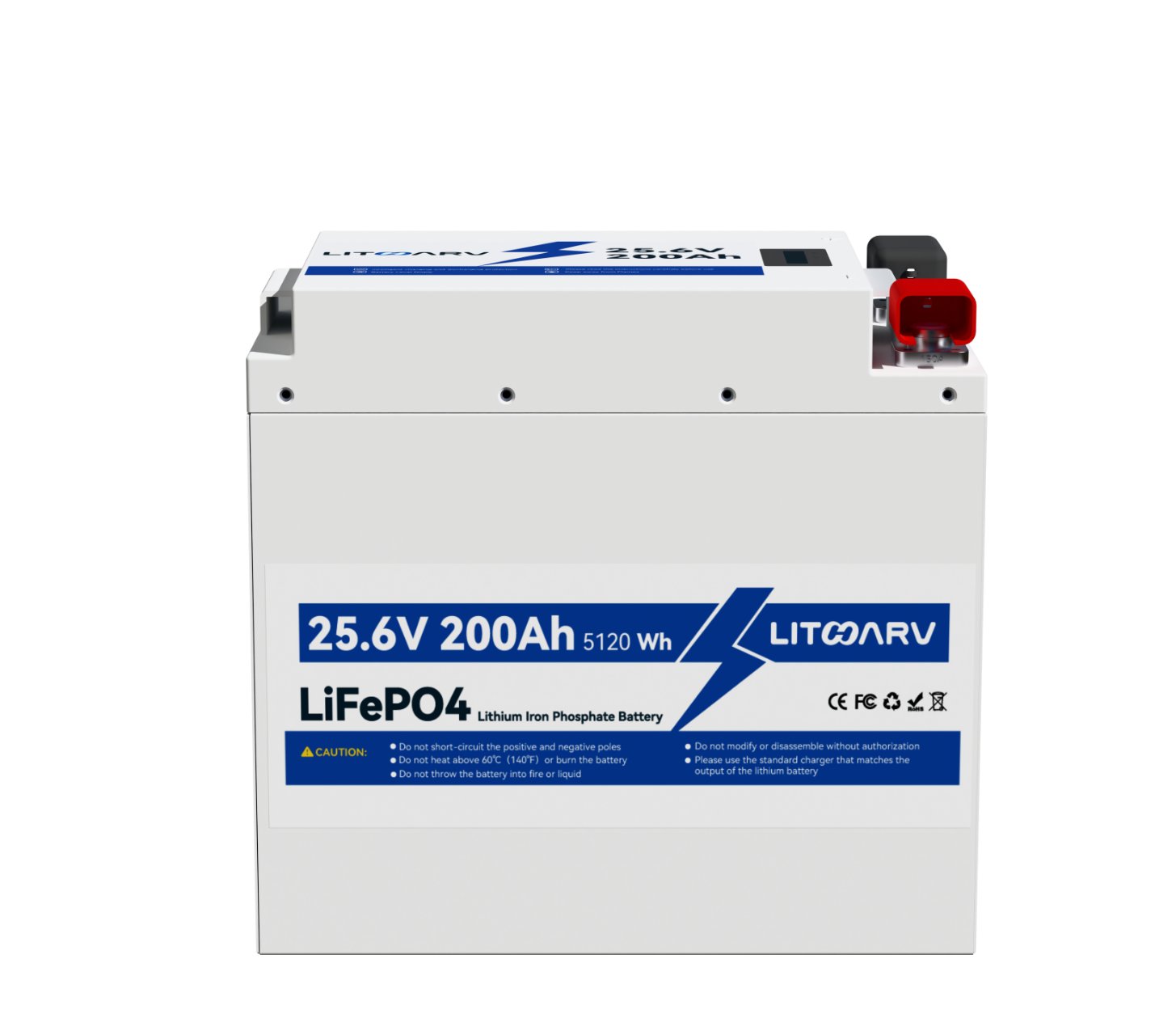

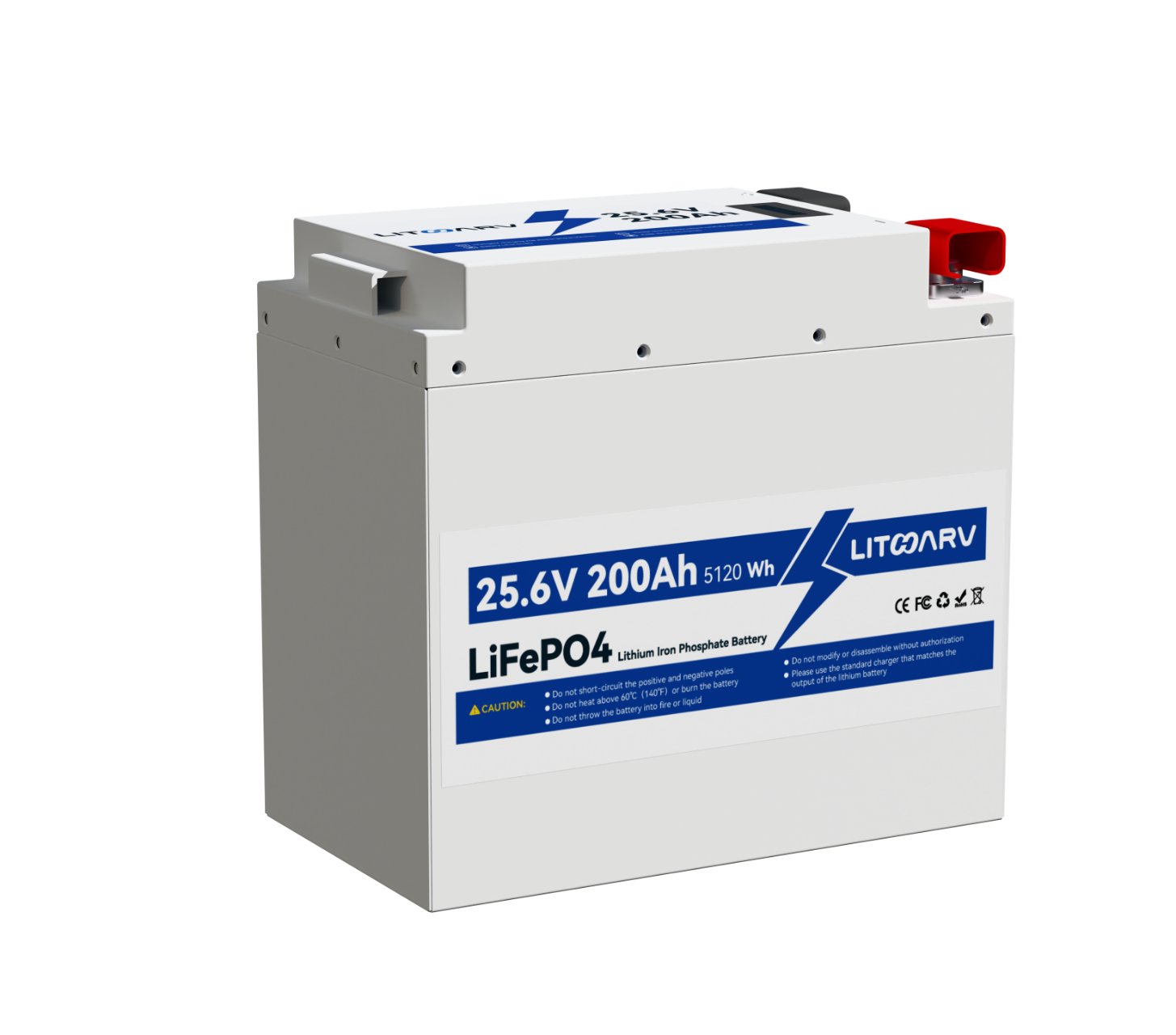

25.6V 5.12KWH 200Ah LiFePO4 Battery
25.6V 200Ah LiFePO4 battery with 5.12kWh energy, integrated BMS, LCD display option, and parallel capability.
- 25.6V 200Ah LiFePO4 battery; 5.12kWh / 5120Wh.
- 8S1P configuration; integrated BMS.
- Max charge current 200A; max discharge current 200A.
- LCD display optional.
- Expansion: max 4 parallel recommended.
- Cycle life >5000 cycles @ 0.5C @ 90% DOD.
- Dimensions 353×205×330 mm; weight 18.7kg.
- Working temperature: charge 0–55°C / discharge -20–60°C.
- Protection level: IP65; altitude < 500m.
- Certificates: CE, MSDS, UN38.3.
Battery
| Parameter | Specification |
|---|---|
| Voltage | - 25.6V nominal |
| Capacity | - 200Ah |
| Energy | - 5.12kWh / 5120Wh |
| Battery Type | - LiFePO4 (LFP), 8S1P |
| Max Discharge | - 200A |
| Cycle Life | - >5000 cycles @ 0.5C @ 90% DOD |
| Warranty | - 3 years replacement |
Product overview
25.6V 200Ah LiFePO4 battery delivering 5.12kWh nominal energy. It uses an 8S1P configuration and an integrated BMS, supports optional LCD display, and is designed for solar, backup, and off-grid energy storage. Certificates: CE, MSDS, UN38.3.
Warranty
3 years replacement warranty
