Litharv · Inverter Series
Hybrid inverters for homes and businesses — 12V, 24V, and 48V models.
Litharv

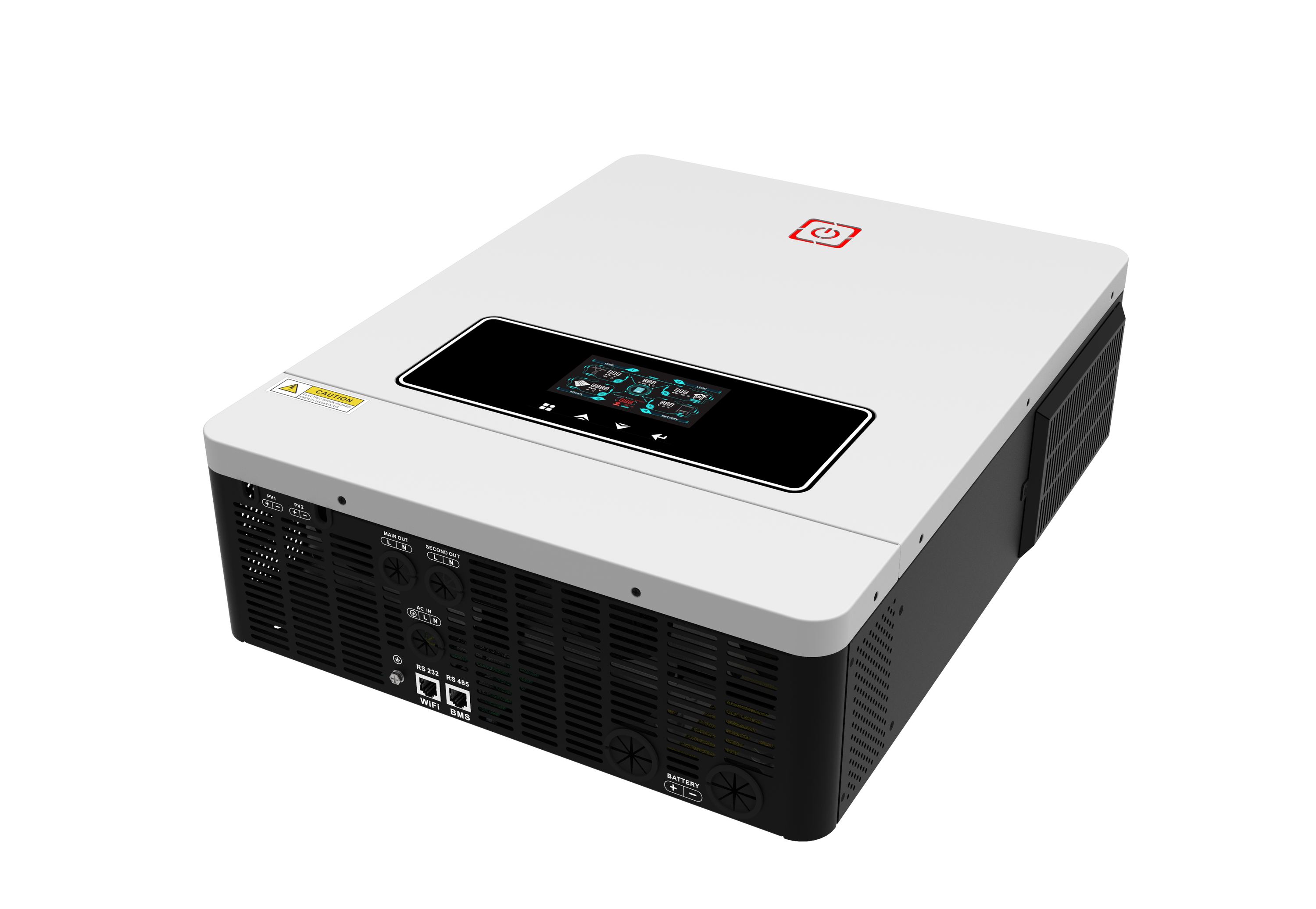

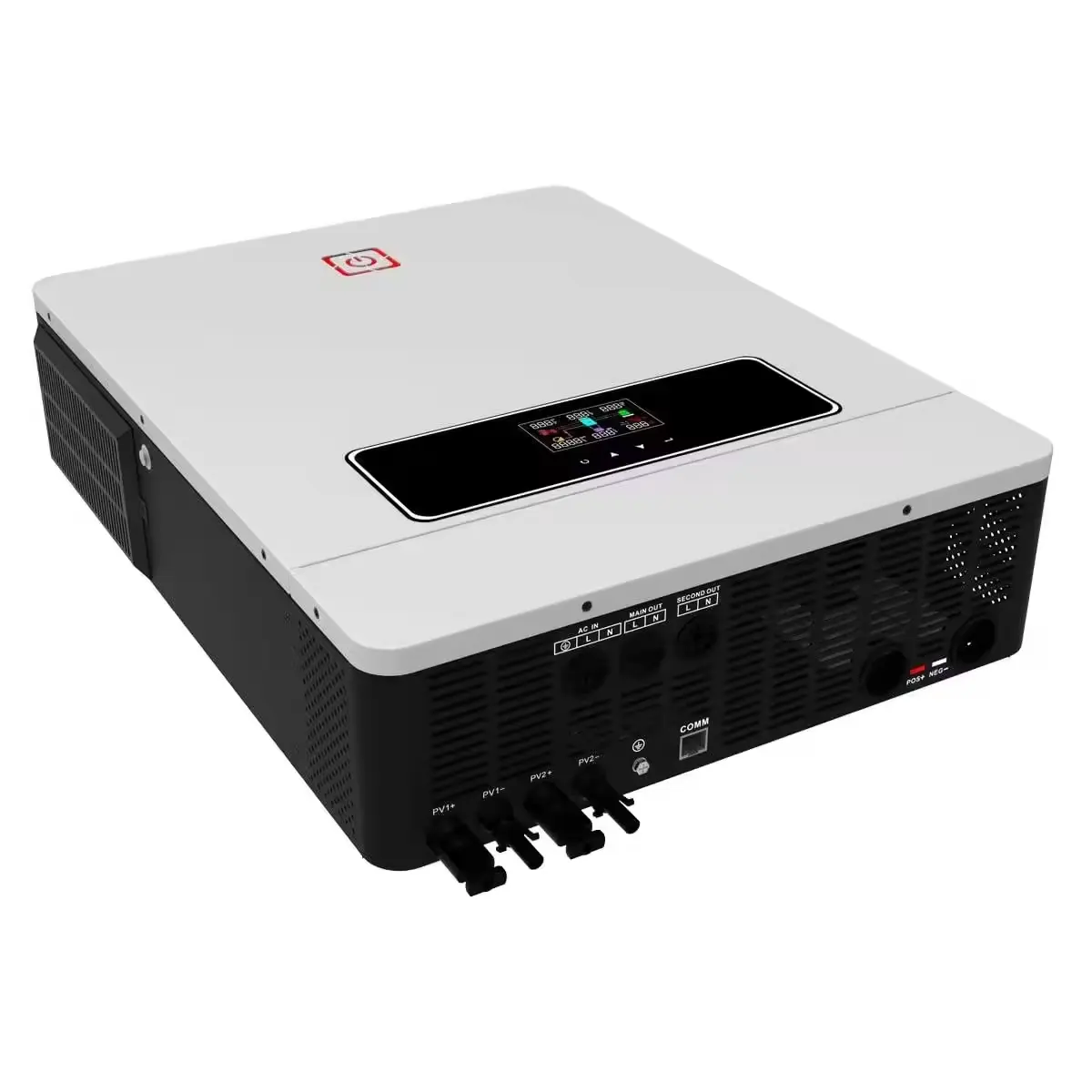

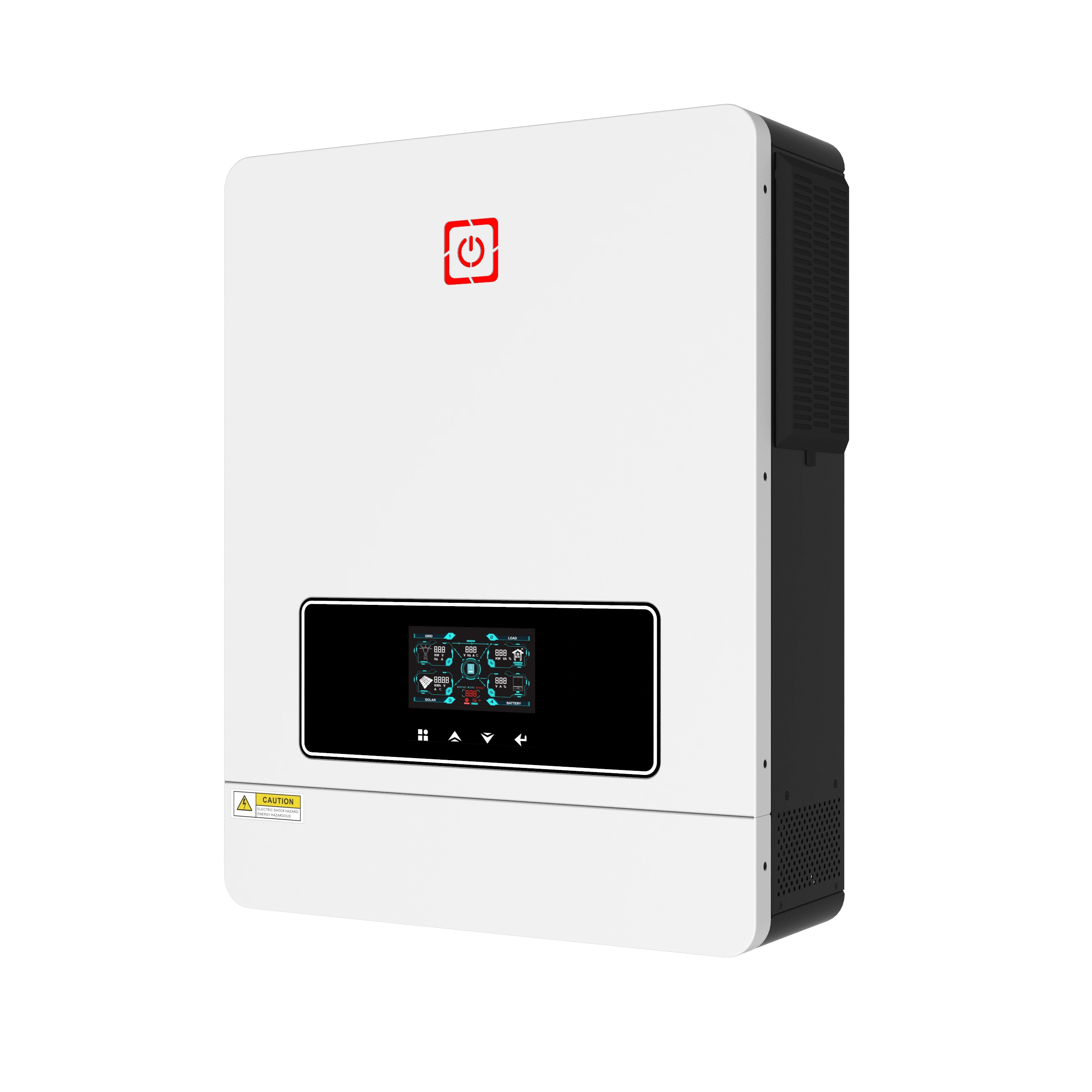

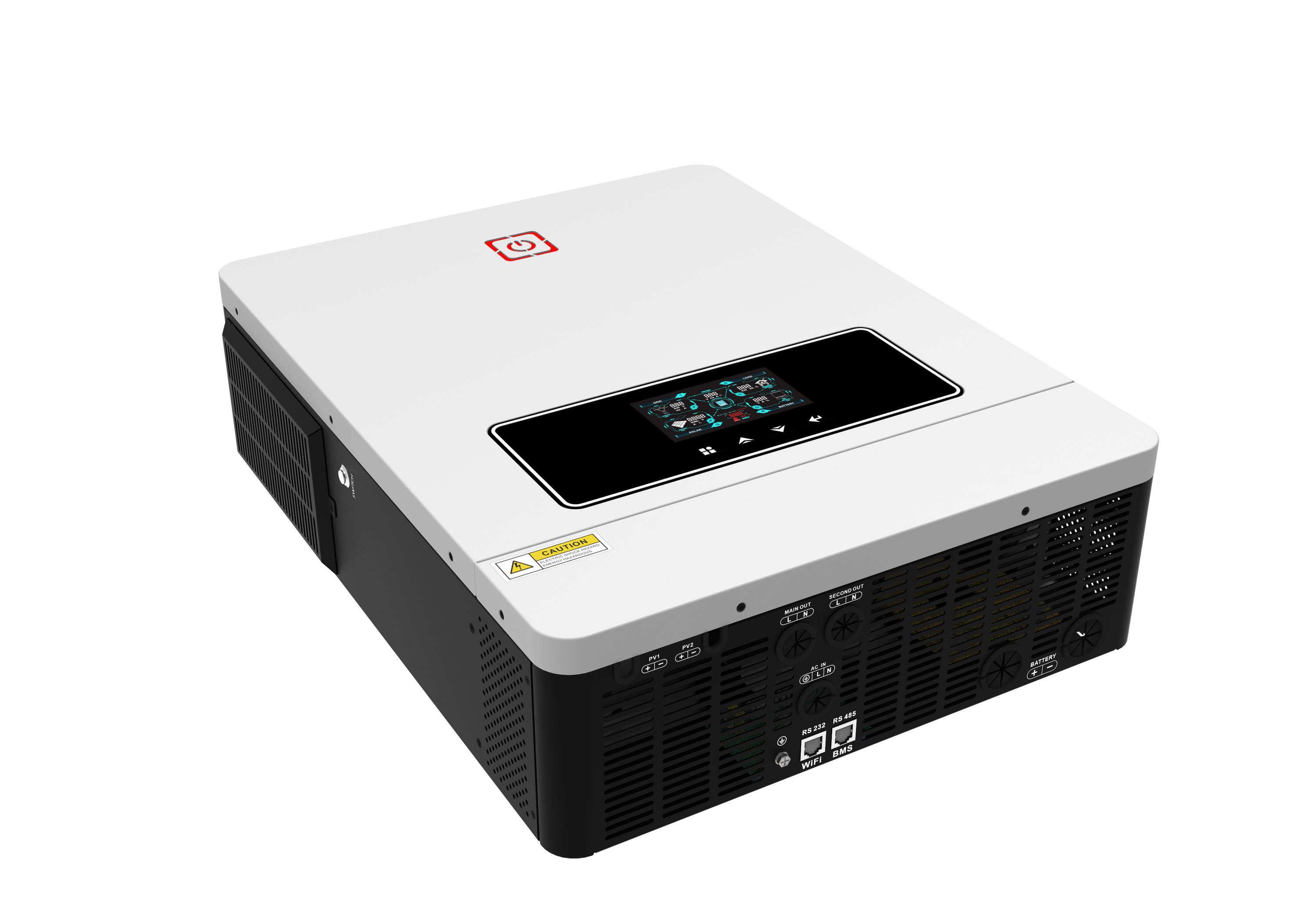

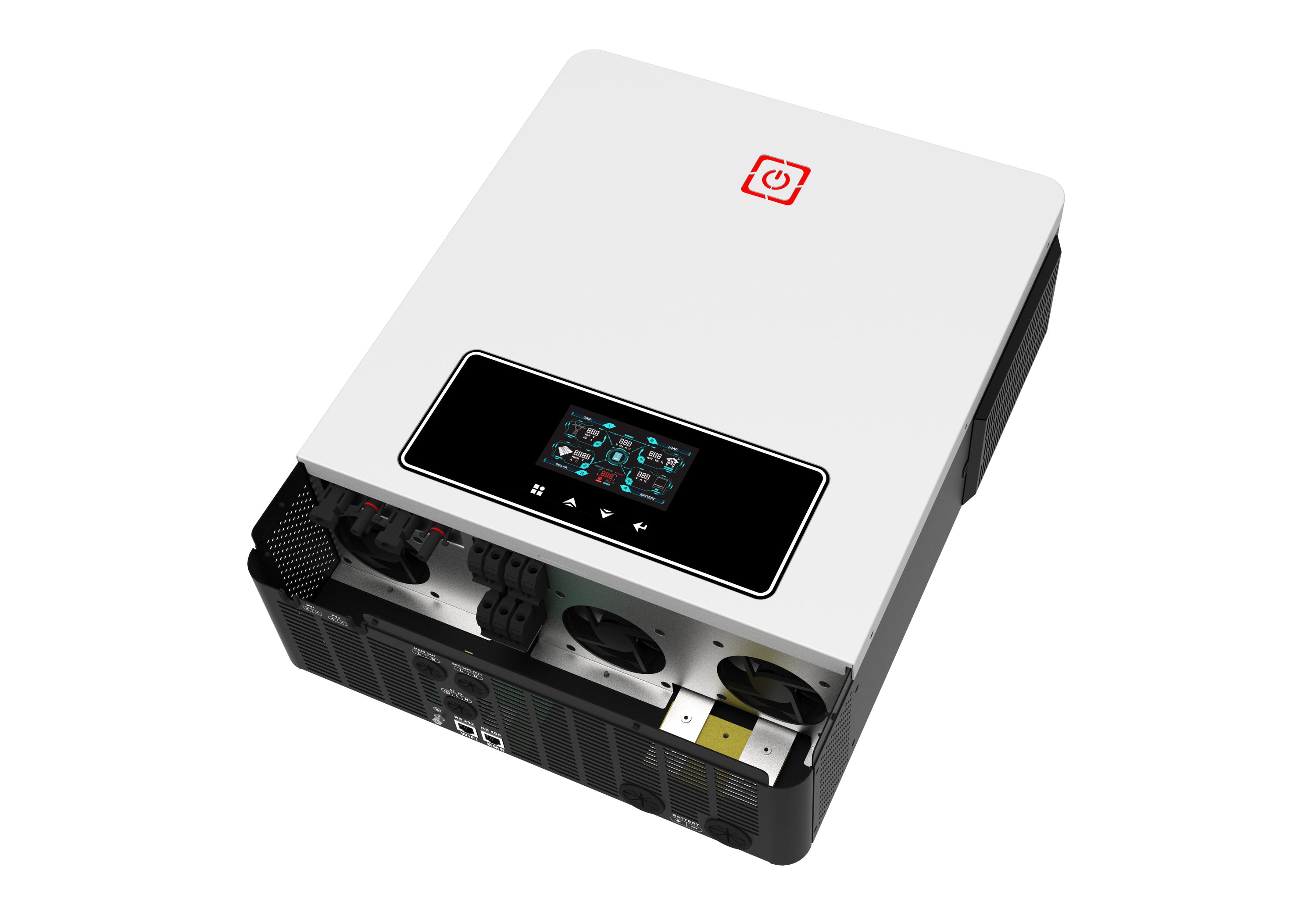

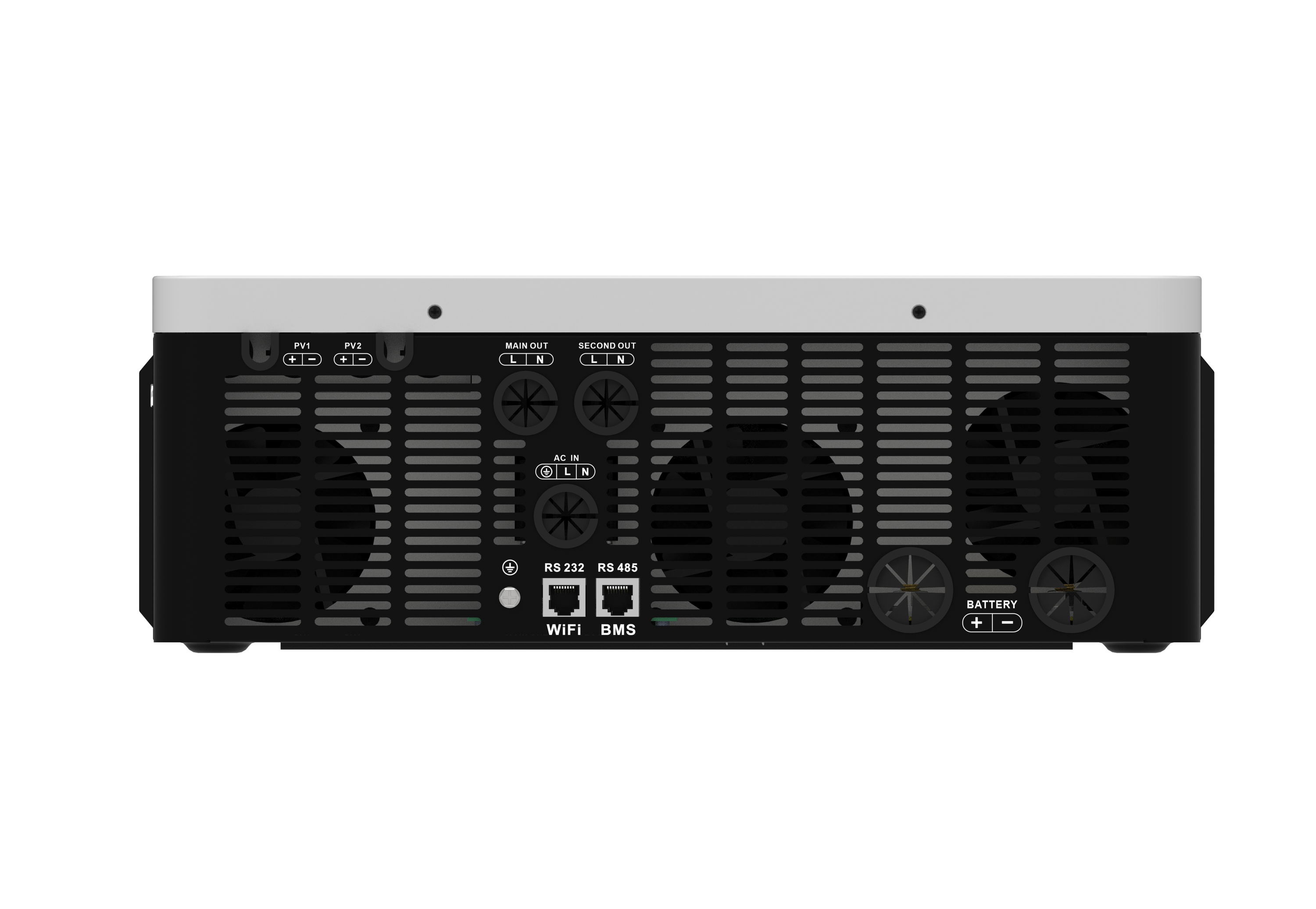

Litharv 10.2kW 48V
LTH-10.2K-48V
10.2kW / 10.2kVA wall-mounted 48V hybrid inverter with dual MPPT inputs, 5400W + 5400W PV input, 500Vdc max solar Voc, and pure sine wave output.
- 10.2kW/10.2kVA wall-mounted hybrid inverter for 48V battery systems
- Dual MPPT: 5400W + 5400W max PV input.
- 500Vdc max solar Voc; MPPT 90–450Vdc.
- Max PV input current 18A / 2 channels.
- 1-phase 220/230/240VAC output; pure sine wave.
- Max solar charging 160A; max AC charging 140A; max solar+AC 160A.
- Peak DC/AC efficiency 98%; battery-to-AC 94%.
- Two load outputs: full 10200W; second load battery mode 3400W; cut-off 52Vdc/return 54Vdc.
- Communication: RS232/RS485/WIFI/GPRS/lithium battery; dimensions 530×390×130 mm; net 14.7kg.
- CE; operating -10°C–50°C; 5–95% RH, non-condensing.
Inverter
| Parameter | Specification |
|---|---|
| Rated Power | - 10200W / 10200VA |
| Inverter Type | - ybrid inverter, 1-phase, pure sine wave |
| PV Input | - 5400W + 5400W; 500V Voc; MPPT 90–450Vdc; |
| Battery Voltage | - 48V |
| Surge Power | — |
| Efficiency | - 98% DC/AC; 94% battery mode |
| Warranty | - 2 years replacement + 1 year repair |
Product overview
10.2kW/10.2kVA 48V wall-mounted hybrid inverter designed for larger residential and commercial solar/backup systems. Features dual PV inputs (5400W + 5400W), 90–450Vdc MPPT range, 160A max solar charging current, 140A max AC charging current, pure sine wave output, and RS232/RS485/WIFI/GPRS/lithium battery communication. CE-compliant.
Warranty
2 Years Replacement + 1 Year Repair Warranty
